Auto Pre-Cut Reinforcing Mesh Welding Line

reinforcing mesh welding production line; Reinforcing mesh welding machine

Reinforcing mesh welding machine is the specialized equipment for wire mesh building steel, fence and any other mesh.This machine welds the line wires and cross wires of the steel to be solid mesh in the principle of multi-electrode resistance welding. It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh laying and convey device, pneumatic system, electrical control system and cooling system. The material can be rolled ribbed steel wire, cold or hot rolled round steel wire.

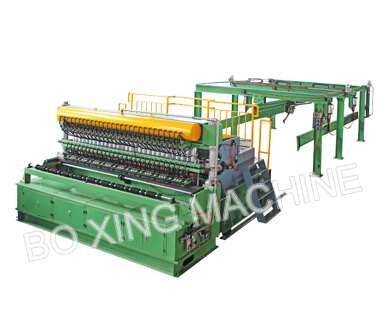

Auto pre-cut reinforcing mesh welding line

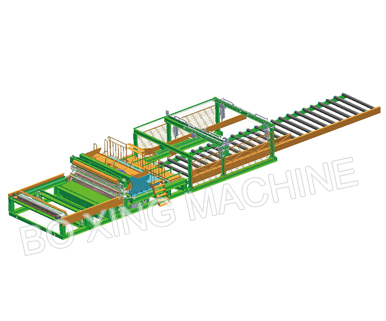

Auto pre-cut reinforcing mesh welding line

Main parameter of Reinforcing mesh welding line:

Model BX-3/6-2500 BX-5/12-2500 BX-5/12-3300
Diameter Ф3-Ф6mm Ф5-Ф12mm Ф5-Ф12mm
Max mesh width 2500mm 2500mm 3300mm
Welded no. 24 24 32
Capacity of transformer 1000KVA 1600KVA 16×125KVA
Line wire space 50-200mm 100-300mm 100-300mm
Cross wire space 50-200mm 100-300mm 100-300mm
Max. welding frequency 30-65 Times/min 30-60 Times/min 30-60 Times/min
Utilization factor of transformer 30% 30% 30%

Work pressure of pneumatic system ≤0.8Mpa ≤0.8Mpa ≤0.8Mpa
Pressure of cooling water 0.2Mpa-0.3Mpa 0.2Mpa-0.3Mpa 0.2Mpa-0.3Mpa

Consumption of compressed air ≥3M3/min ≥3M3/min ≥3M3/min
Load mode of line wire Pre-cut; straightness ≤3mm/1000mm Pre-cut; straightness ≤3mm/1000mm Pre-cut; straightness ≤3mm/1000mm
Load mode of cross wire Pre-cut; straightness ≤3mm/1000mm Pre-cut; straightness ≤3mm/1000mm Pre-cut; straightness ≤3mm/1000mm

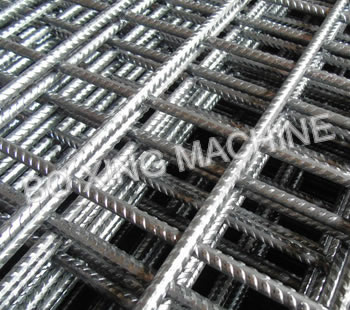

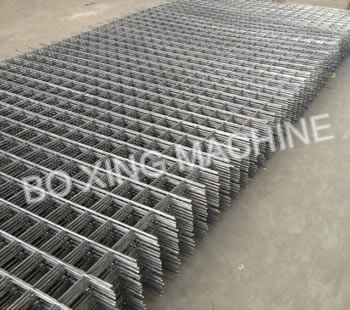

Typical application of welded wire mesh
