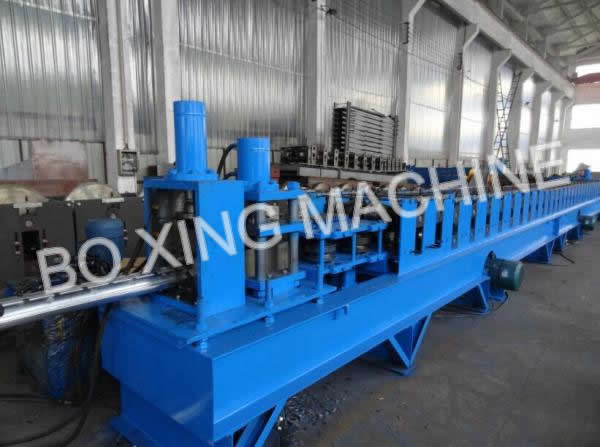

Fence Post Roll Forming Machine

Fence post roll forming machine; Pitch Fence Post Forming Machine

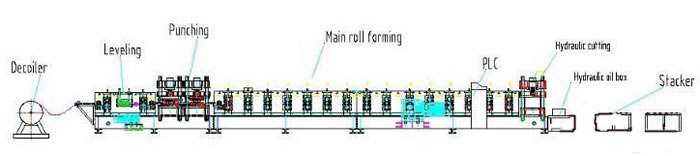

Process flow of peach post forming machine:

Technical parameters:

  • Main power:2-11KW motor made in china
  • Line Speed: 2-3m/min
  • Main roller stations: 30
  • Material of shaft:45# steel, hardening and milling on the surface
  • Rolled thickness :1-1.5mm,G350Mpa galvanized steel sheet or cold rolled steel
  • Material of the rollers: GCr15.quenched HRC58-62 ,polished,milled on the inner holes and outer radius to guarantee the rollers precision
  • Way of cutting: hydraulic cutting
  • Way of holes punching: hydraulic pre-punching
  • Cutting power: 11KW
  • Cutting length tolerance:+/-1.5mm
  • Way of control:adopt PLC, Panasonic PLC made in Japan
  • Touch screen :MCGS made in Taiwan
  • Yaskawa inverter speed control made in Japan
  • Omron encoder to measure the length,made in Japan
  • The rollers punch do the sticking
  • Requirment: 380v,50Hz,3Hz or according to the customer’s requirements
  • Main machine size:16mx0.7mx0.9m
  • Machine color: Industrial blue

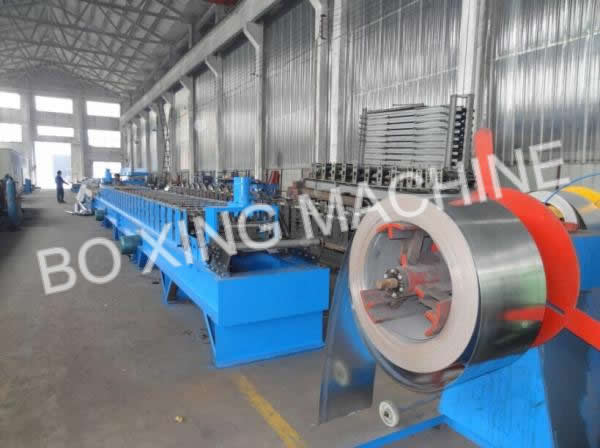

Hydrauclic decoiler:

  • Capacity: max 5tons
  • Inner diameter: 450mm--520mm
  • Outer diameter: 1000mm Motor power:5.5kw

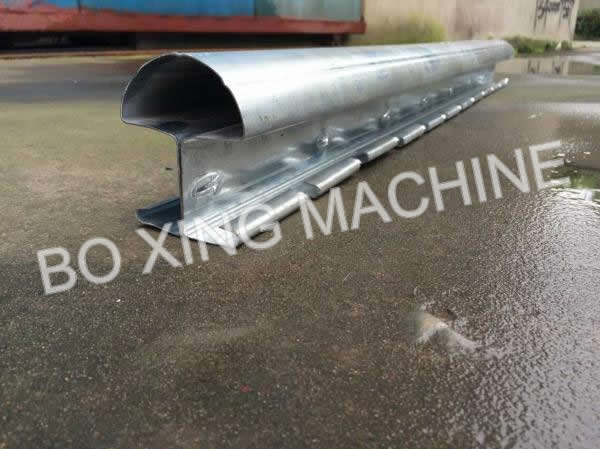

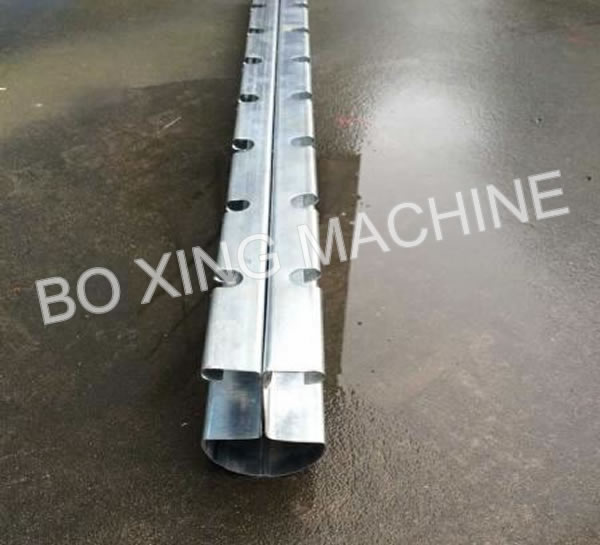

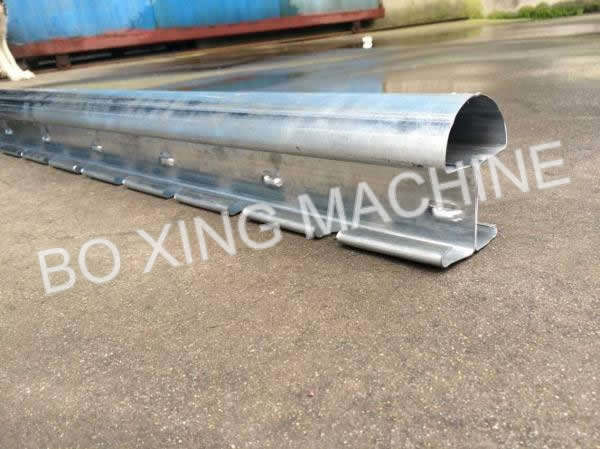

The finished products:
