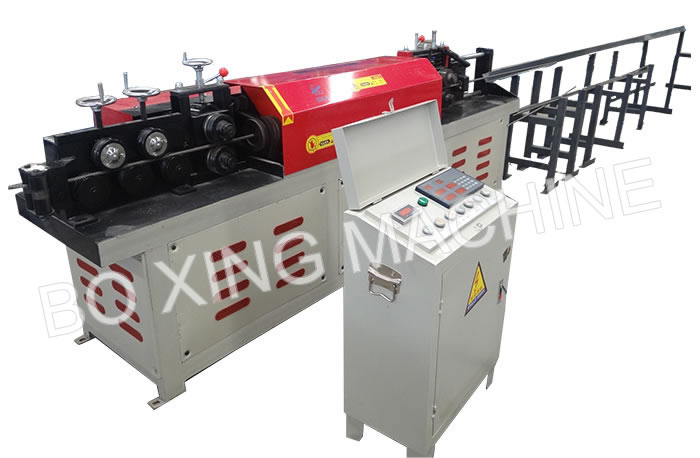

High Speed Wire Straightening And Cutting Machine

Description of high speed wire straightening and cutting machine:

The high-speed straightening and cutting machine designed by boxing machine is suitable to straighten and cut coil wire, hot rolled bar, cold rolled ribbed steel, it won’t scrab the rib, and less cutting tolerance, good straightness, easy operation and high efficiency. This machine is mainly is composed of pay-off , straightening machine (double traction, chain drive) flying wheel cutting machine, electric cabinet, 12 meter collect rack.

wire diameter: 3-10mm
Material: HRB335 hot rolled steel rod; deformed and plain wire
Speed: max. 160m/min
Cutting length: 1-12m
Cutting way: flying wheel
Straightening tolerance: ≤2mm/m
Cut-lo-length tolerance: ≤2mm with approximate switch
Total power: 15kw
Total weight: 3000kg
Machine size: 17m*2m*2m (L*W*H)
