3D Wire Mesh Panel Machine

3D Panel Production Line; ( 3D panel machine) ;3D wire mesh panels machine

3D panel is produced by 3d panel machine, which is very popular in some countries. So we researched 3d panel machine and eps machine related products. 3D Panel Machine is the main machine of the 3D Panel Production Line, which controlled by PLC system, touch screen as operation surface, step motor as drive.

1. The upper wire mesh and lower wire mesh were welded with slanted steel wire to form a product---3D Panel. 3D panel machine can also produce the single-sided 3D Panel which is widely used in external wall insulation system in China market (i.e. 3D Panel has only one side wire mesh);
2. PLC, touch screen, specially designed chain system;
3. High productivity, sparse inserting panels can reach 700-800 SQM per 8 hours.
4. It can produce two types of 3D Panels (sparse 3D panel and dense 3D panel)
5. Low lack welding rate, even welding strength, excellent quality and low production cost.
6. Design special machines by requirements
7. Labors: 2-3

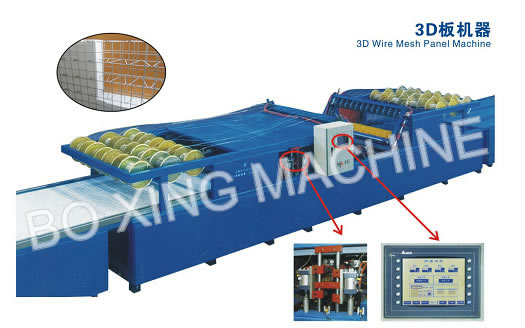

3D Panel Production Line

The followings are the main specifications:

Input Power Supply AC380V 50HZ 75KVA
Air Source Equipment 3m3/min 0.6Mpa
Standard size Wire Mesh Structure 50mmX50mm
Welded Mesh Wire Diameter 1.8-2.5mm or 2.5-3.0mm
Inserting Wire Diameter 1.8-2.5mm or 2.5-3.0mm
Thickness of EPS core 50mm-100mm
Structure of Inserting Wire sparse, dense inserting
single, double sides mesh
Distance between EPS Core and Mesh 10mm
Length 3000mm-6000mm
Width 1220mm
Non-standard size Wire Mesh Structure As Requirement
Welded Mesh Wire Diameter 3.0-3.5mm or 3.5-4.0mm or as requirement
Inserting Wire Diameter 3.0-3.5mm or 3.5-4.0mm or as requirement
Thickness of EPS core 100-150mm or as requirement
Productivity   Dense inserting: 400-500m2/8hours
Sparse Inserting: 700-800m2/8hours
Material Wire Materials Galvanized or cold drawing low carbon wire
Material of EPS Core Fire resistance type
3D panel lack welding rate ≤3%
Measurement of the machine 3d panel machine Length 13500mm
3d panel machineWidth 1800mm
3d panel machineHeight 1700mm
3d panel machineWeight 4000kg
