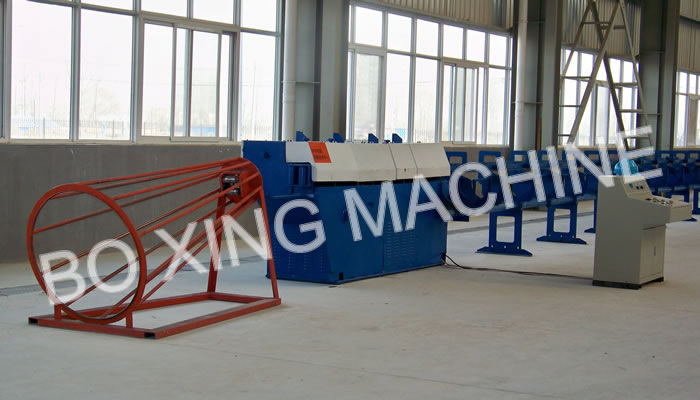

Reinforcing Wire Straightening And Cutting Machine

Introduction of wire straightening and cutting machine:

wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the reinforcing mesh welding machine, its standard construction contains: pay-off, feeding system, straightening spinner system, pneumatic clutch cutting system, normal stocking rack, controller with PLC
and Spare parts.

Model BX-GT5/10 BX-GT6/12 BX-GT10/14 BX-GT8/14
Wire dia. Rebar or round bar Φ5-Φ10 mm Φ6-Φ12 mm Φ10-Φ14 mm Φ8-Φ14 mm
HRB335 Φ5-Φ8 mm Φ6-Φ10 mm Φ10-Φ12 mm Φ8-Φ14 mm
HRB400 Φ5-Φ8 mm Φ6-Φ10 mm Φ10-Φ12 mm Φ8-Φ14 mm
Cutting length 1-12 m or according to customer's requirement
Speed (3-grade adjusted) 70-100-130m/min
Straightening ratio ≤ 2 mm/m
Cutting tolerance Signal type, ≤ ±1 mm

Total power 18.5+4 Kw 22+4 Kw 30+4 Kw 37+4 Kw
