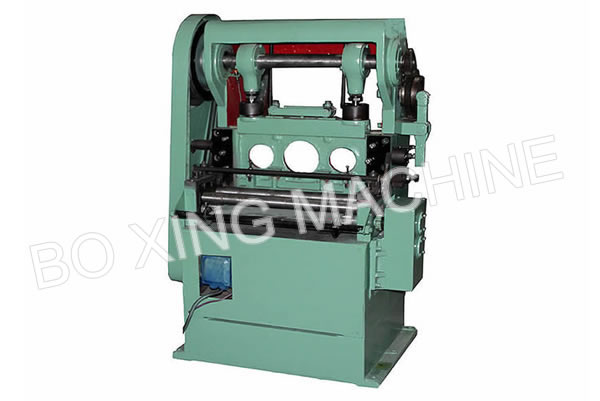

Typicalapplication of expanded metal mesh:1:BXE-1.0-600 (6.3T) Expanded mesh machinery; ;expandedmetal lath machine

The (expanded mesh machinery; expanded metal lathmachine) can process cold-rolled steel, aluminummaterial to expanded mesh with hexagonal, diamond, half round, etc. which areused for building, hardware, machine tool, electric industrial, protective anddecoration of household electrical appliances.
Material strength is under 450N/mm2, material withelongation over 25%.
Expanded process is finished by crankshaft connecting rod system,moved by cam,feed by stepping motor, the feeding distance can be easilyadjusted. This machine has characteristics of structure, easy operation andsteady performance.

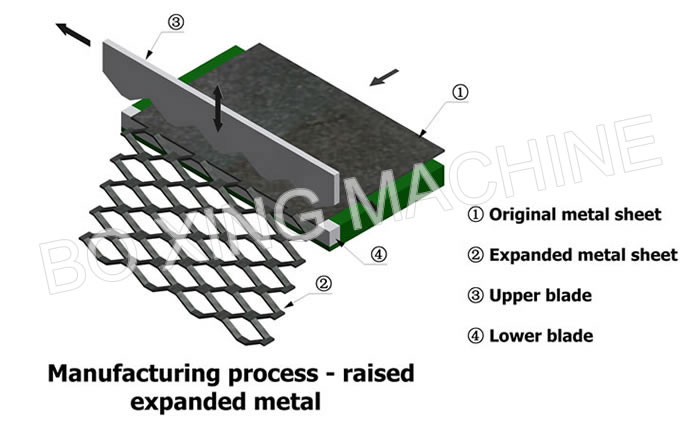

2:Expanded metal mesh production process：

1.     Sheets or coilsor metal are fed into the expanding machine. A little metal can create a lot ofmesh, adding value and saving resources and money.

2.      Each machine is fitted with a unique "Knife", dedicatedto a particular pattern. New patterns and knives can be created in-house forspecific applications.

3.      The machines are then programmed or manually controlled to ensurethe metal is expanded to the exact specification. Rigorous quality checks arecarried out to ensure product consistency throughout the expanding process

4.      Using the unique shearing and streching process means very littlewaste is created. the metal is sheared and then streched in a single processcreating the apertures and therefore expanding the metal. The mesh is theneither cut into sheets or wound onto coils ready for shipping or furtherprocessing

Main technical parameters:

Model: BXE-1.0-600
Max. Coil width: 600mm;
Thickness of steel coil: Max. 1.0mm;
Expanding speed: Max. 260-300 strokes/minute;
Motor power: 2.2KW;
Expanding force: 6.3T;
Overall size of machine(L*W*H):1280*600*1400mm
Overall of electric cabinet(L*W*H): 600*600*1270mm
Machine weight: 1.3 tons
Controlled by PLC+touch screen; Length calculate+automatic cutting

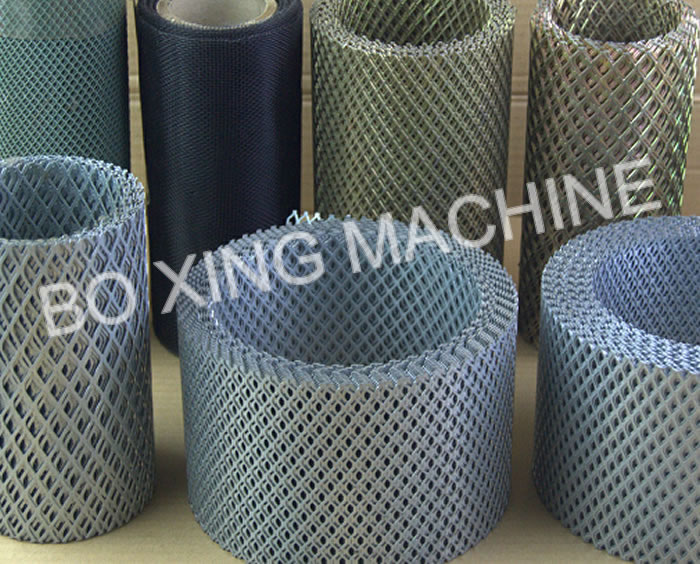

Typical application of expanded metal mesh:
