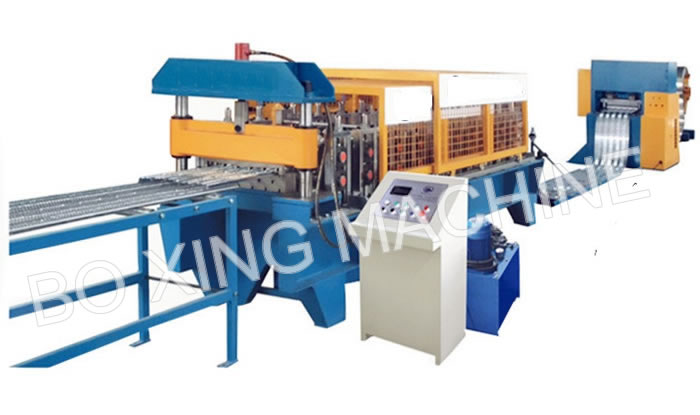

High speed Hi-rib lath production line; Hi-rib lath production line; Hi-rib lath machine

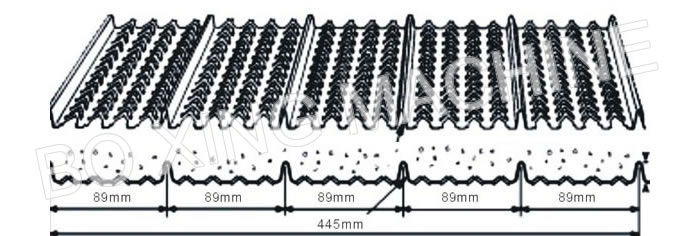

The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.
| Decoiler: | |
| Inner diameter | 350mm |
| Outer diameter | 700mm |
| Material width | 475-500MM |
| Loading weight | 2000kg |
| Servo motor | 1.5KW |
| Main machine | |
| Pressure | 450 KN |
| Material thickness | Max.1.2mm GI |
| Mesh width | ≤700 mm |
| Punching speed | 450-500 strokes/min, or 10-12m/min |
| Slide stroke | 20 mm |
| Max. Die height | 200 mm |
| Die height adjustment | MAX. 50 mm |
| Working table size | 500×700 mm |
| Overall size (L×W×H) | 1300×1300×1900 mm |
| Motor Power | 15-22 KW |
| Machine weight | 1700kg |
| Roll forming and cutting | |
| Driven way | Chain and gear |
| Forming Motor power | 22kw |
| Profiling mold | 45 Steel |
| Roller station | 18 |
| Hydraulic cut | 7MPa 40L Tank |
| Size | 7500mmWx1100mmLx1700mmH |
| Weight | 3500kg |
