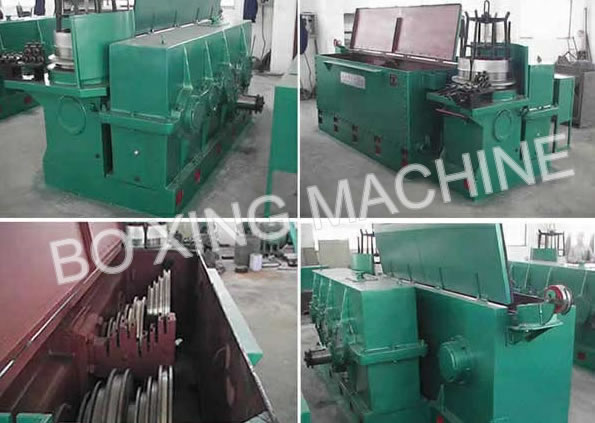

Water Type Wire Drawing Machine

Water Type Wire Drawing Machine; Wire Drawing Machine

Water Tank type wire drawing machine is Suitable for drawing the medium and high carbon wire whose diameter is less than 6.5mm, the drawn wire can be use as wire rope, spring wire, bead wire, electrical power wire, spoke wire and so on. Machine Features: Wire Drawing Die can be cold by immersing in the saponification liquid; Drive with two powerful special combination of narrow V belt drive gear boxes Control type: normal control, frequency control Conpare with traditional pulley-type drawing machine, it can save 50% power, low investment, los sapce needed to install, saving operator (one person can operate many machines). Note: The drawing passage number is designed according to customer's requirements.

Item(Unit) LT-12/630 LT-11/560 LT-9/560 LT-15/450 LT-11/450 LT-17/260
Capstan dia.(mm) 630 560 560 450 450 260
Draw passage(time) 12 11 9 15 11 17
Max incoming dia.(mm) 5.5-6.5 5.5-6.5 3.2-5.6 4.0-5.5 8.0(copper)3.8-4.0 2.8
Min outgoing dia.(mm) 2.0-3.5 2.0-2.5 1.4-3.0 1.5-2.0 3.0-1.5 0.5-0.9
Total compressibility(%) 90 90 90 90 84 75
Average partial compressibility(%) 17.8 17.8 18.25 15.6 15 15.8
Wtre drawing line speed(m/s) 4.33 4.33 4.17 4.17 4.37 8
Motor power(KW) 155 130 130 80-90 80 55
Dimersion(mm) 4680*3000*1840 4680*3000*1840 5980*3500*1840 5900*3600*1780 5780*3300*1640 5000*3000*1640
Weight(kg) 16000 14000 12000 13000 11000 9000

The Finished Products (Wire)
