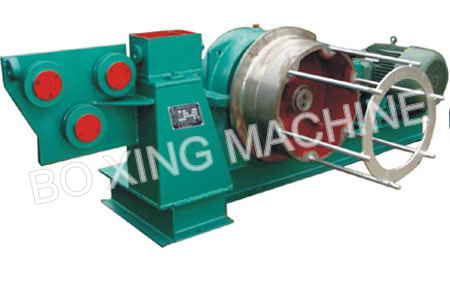

Horizontal Wire Drawing Machine; Double Head Wire Drawing Machine
The drawing machine is used to draw high carbon wire, medium carbon wire and low carbon steel wire, it is easy to operate, the two capstans can draw the wire at the same time.
Capstan material: cast steel
Bull Block Copper Wire Drawing Machine
Main parameter:
| Model | LWD350 | LWD400 | LWD550 | LWD650 | LWD750 | LWD850 | LWD1000 |
| Capstan dia. (mm) | 350 | 400 | 550 | 650 | 750 | 850 | 1000 |
| Max. inlet wire dia. (mm) | 6.5 | 8 | 10 | 12 | 14 | 16 | 18 |
| Speed (m/min) | 25 | 25 | 35 | 30 | 20 | 20 | 20 |
| Motor power (kw) | 11 | 15 | 18.5 | 22 | 30 | 45 | 55 |
| Reducer | ZQ350 | ZQ400 | ZQ550 | ZQ650 | ZQ750 | ZQ850 | ZQ1000 |
| Weight (kg) | 850 | 1100 | 1300 | 2300 | 2700 | 3500 | 5000 |
The finished products (wire):
