Wire PVC Coating Line: iron wire PVC coating machine line

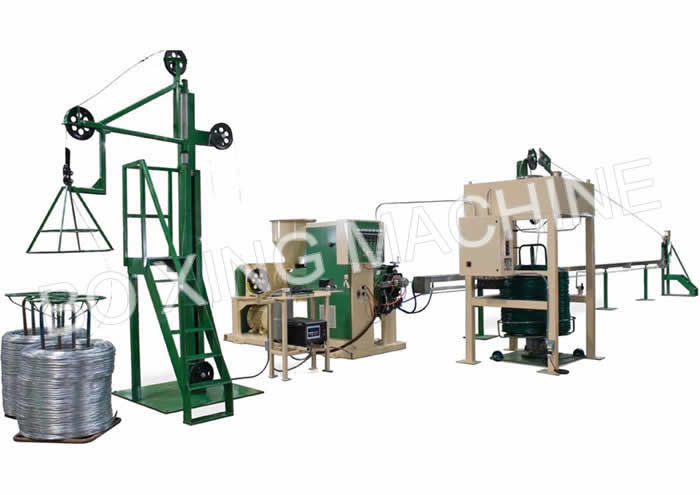

Wire PVC coating line is used to produce PVC insulated wire, the customer can produce insulated wire of different size by change the machine head and related accessories. The extruder and tractor apply YCT series governor motor with big range of speed adjustment; we use the intelligent temperature control instrument to control the temperature of the capstan and head automatically with high sensitivity. The structure of the production line is simple, easy to operate, safe and reliable.

Screw dia: 65mm
Screw length: 1625mm
Aspect ratio: 25:1
Screw rotate speed: 4-40r/min
Motor: Y160M-4; 11KW
Capstan heating and cooling: 5KW
Machine head heating power: 5KW
Center height of the machine: 1000mm
Machine weight: 450kg
