Gabion Mesh Machine Line

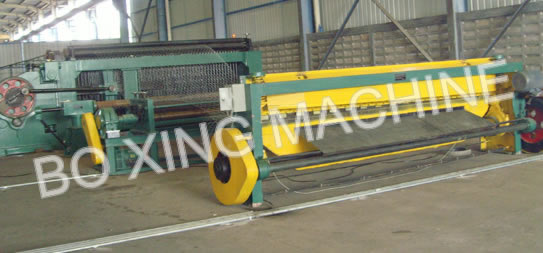

Automatic Gabion mesh production line (Gabion mesh making machine line)

We have updated our gabion machine line. It could weave the gabion mesh-cut the mesh-convey the mesh-edge the mesh 100% automatically. That could improve the production efficiency and save the production cost. And we would offer our high quality machine and the best service for you.

Gabion wire mesh machine is also called heavy- duty hexagonal wire mesh machine.
It adopt PLC touch screen frequency control, which has the function of frequency control of motor speed according to different of wire diameter ,has buffer function when speed increase or decrese in very short time, can count output every year,can save sbout 30% energy.

The product purpose,
with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.

Prameters

Specification
(mm)		 Maxnet Breadth
(mm)		 Max Thread
Diameter
(mm)		 Twisting
Model		 Main Shaft Ratary
Speed		 Motor Power
(KW)		 Theoretical
Production Speed
Twisting m/h Diamention
(LXWXH)mm		 Weigh
t(T)
(Mesh/min)
60X80 2300 2.8 double 25 11 25 165 5200X1400X2400 13
3300 2.8 double 25 15 25 165 6200X1400X2400 14
4300 2.8 double 25 22 25 165 7200X1400X2400 15
80X100 2300 3 double 25 11 25 195 5200X1400X2400 13
3300 3 double 25 15 25 195 6200X1400X2400 14
4300 3 double 25 22 25 195 7200X1400X2400 15
100X120 2300 3.2 double 25 11 25 225 5200X1400X2400 13
3300 3.2 double 25 15 25 255 6200X1400X2400 14
4300 3.2 double 25 22 25 225 7200X1400X2400 15
