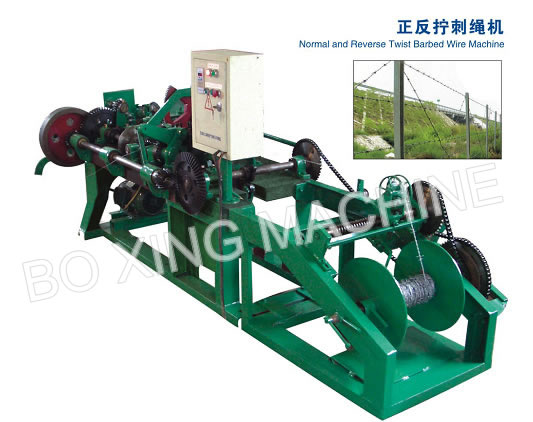

Reverse Barbed Wire Machine

Introduction of Reverse Barbed Wire Machine:

GB/T343 requires the common hot dipped galvanized low carbon steel wire. The products can be used in the national defence, railroad, highway, stockbreeding and agriculture and so on. BX-series barbed wire machine is make up by spool wire and twist wire two parts.

Main technical parameter

1). BX-C type barbed wire machine

SN

Item

Parameter

1

Motor

2.2 KW

2

Main shaft rotating speed

357 turn/min

3

Output

50 Kg/h

4

Twisting number

4, 6

5

Barb distance

70mm, 102 mm

6

Main wire diameter

1.6-2.6mm

7

Barbed wire diameter

1.6-2.3 mm

8

Main machine size

1900mm×1300mm×980mm

9

Recoiler size

1300mm×800mm×700mm

10

Machine weight

1200Kg


Remark: special requirement can be according to both parts' agreement.

2). Barbed wire specification

SN

Item

Unit

Parameter

1

Barbed space

mm

50, 80, 100

2

Main wire diameter

mm

2.2-3.5

3

Barbed wire diameter

mm

1.8-2.2

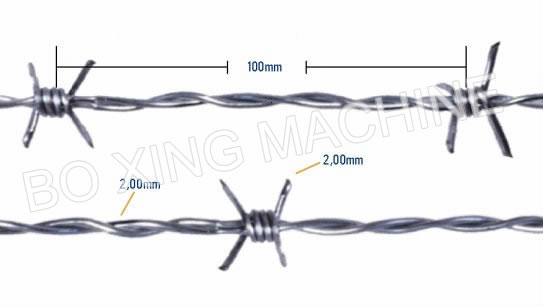

Finished products
