Double Barbed Wire making Machine

barbed steel wire machine，barbed wire machine，barbed wire making machine, fully automatic barbed wire machine

1 Uses and Characteristics

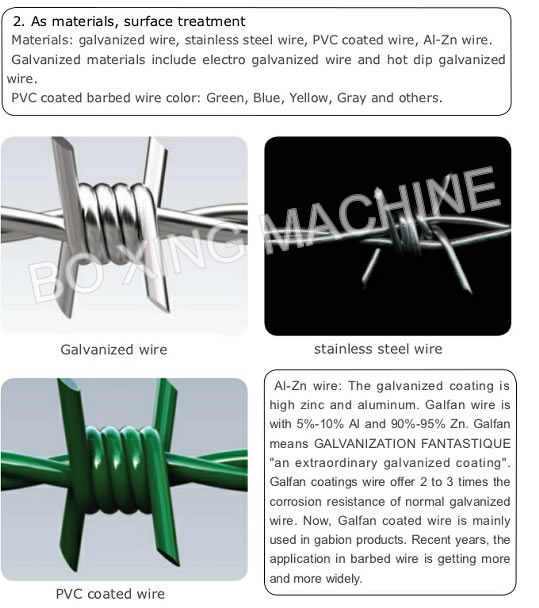

The machine is mainly suitable for producing all kinds of stocks thorn steel wire, the materials of products should accord with GB/T343-94 standard requirement< the common usage of hot-dipped galvanized low carbon steel wire >. The products are widely used in national defense, railway, highway, agriculture forming etc profession.

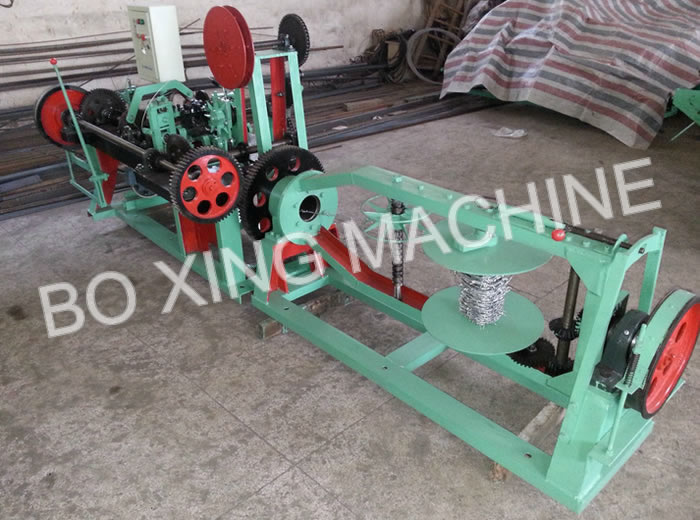

BX-A  type barbed steel wire is connected by circle wire and received wire and has four silk plates. All parts work coordinately, move steady, operate rumble and reliable. It is the only equipment of producing barbed steel wire at home at present.

2  the main parameter
The main parameter of BX-A barbed steel wire machine
project                             unit           basic parameter
electric motor                       type             Y100L2-4
electric motor                        KW                  3
The circle of main rorating axis         t/min                 402
pulling rope speed                    t/min                 470
the speed of  pulling rope             t/min                   134
Rotational speed of receiving the rope and disc      t/min            30-255
the part of the main engine               mm            1900*1300*980
the part of receiving rope and twist         mm           1800*750*750

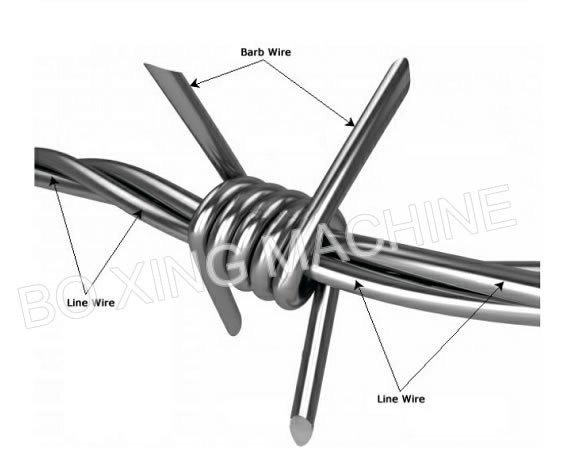

2. the specific of the barbed steel wire
project                           unit             basic parameter
the pun cature distance               mm                76(3寸） 102（4寸）
the twist number                    a                   4
the diameter of sock wire           mm                  2.0-2.8
barbed of diameter                mm                  1.8-2.2
