High Speed Razor Barbed Wire Machine Line

high speed razor barbed wire machine production line and characteristics:
Razor barbed wire is common safe operation material, it has advantages that strong sharp, easy to construct, low cost and so on. Razor barbed wire machine is a special equipment to manufacture razor barbed wire, it has advantages that operate simply, safety, efficient production, adapt to many sorts and so on.

Application:
Finished products of razor barbed wire machine (production line) are used for all kinds of special places and temporary barriers of protective materials.

Composition and function of the equipment:

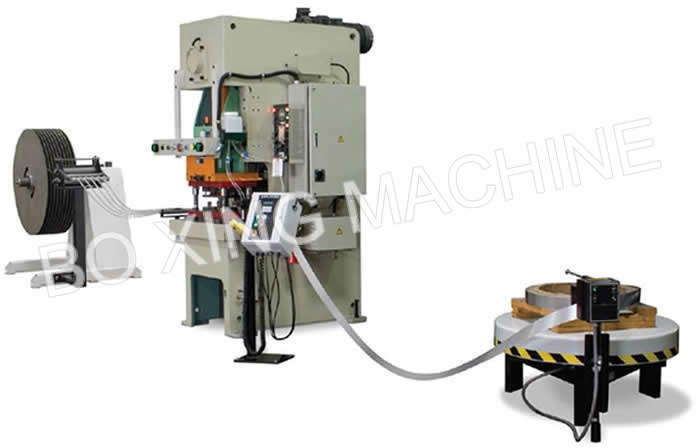

Blade punching machine is used for producing composite blade thorn rope when needed for the thorn. Blade punching machine including pay-off, punching machine, blade separation machine and re-coiler. Punching and shearing equipment is composed of press machine, servo feeding and mold.

Pay-off is used for storing and offering punching and shearing material; Servo feeding device offer galvanized plate to punch as certain rhythm and the specific length; Press machine and mold are used for shearing galvanized plate to blade; Re-coiler is divided into upper and lower rolling. Re-coiler is used for dividing shearing blade into a few stripes, rolls around.

Main parameters of machine:

1). Pay-off:

Item Name Parameter
1 Inner diameter 500mm，Adjustable
2 Outer diameter 1000mm
3 Loading weight 500Kg
4 Motor Power:25W, Voltage: 380V, Rotation speed: 1400r/min
5 Machine size 700×700×1230mm
6 Weight 500Kg

2). Punching machine:

Item Name Parameter
1 Normal force 600KN
2 Slide block stroke 14mm
3 Sliding block strokes 1000 times/min
4 Max Die Set Height 200 mm
5 Die Height Adjustment 170-200 mm
6 Size of working table 634mmX470mm
7 Motor Power:7.5KW, Voltage：380V, Voltage：380V
8 Size of equipment 1150*1100*1860mm
9 Weight 1926Kg

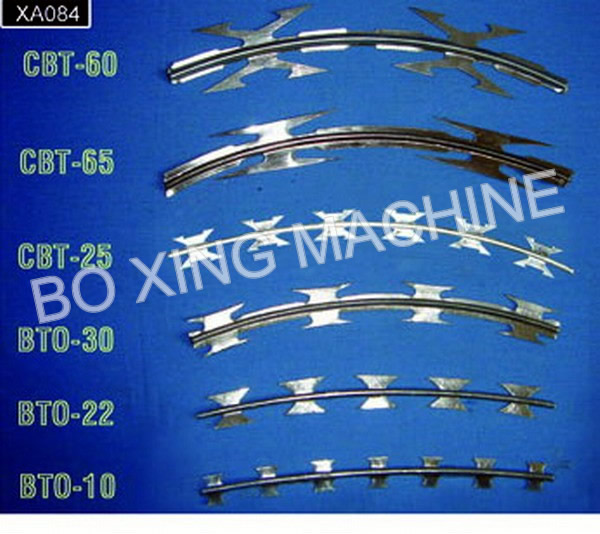

3). Mold:

Item Name Parameter
1 Mold 1 BTO30, 9 stripes
2 Mold 2 BTO28, 13 stripes


4). Re-coiler：

Item Name Parameter
1 Inner diameter 100mm
2 Outer diameter 550mm
3 Loading weight 500Kg
4 Motor Power:0.75W, Voltage: 380V, Rotation speed: 1400r/min
5 Machine size 1510*1200*1820mm
6 Weight 458Kg


5）. Equipment accessory :

Item Name Material QTY Remark
1 Spanner 45 1
2 Stacker box Q235 1 Used for press machine
3 Re-coiler plate Q235 5 Used for re-coiler
4 Car leveler Q235 1
5 Foundation bolt Q235-A 4 Contain nut and gasket
6 Expansion bolt 45 32 Contain nut and gasket
