(nail machine ,nail making machine, china nail making machine)

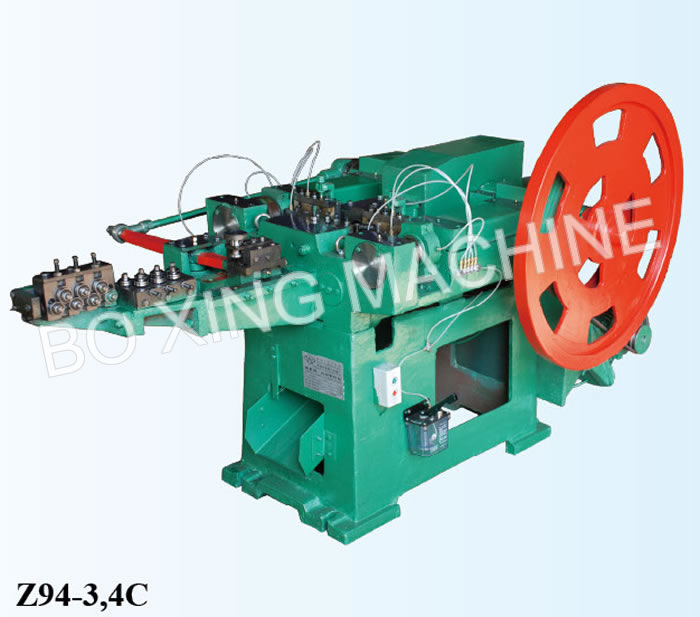

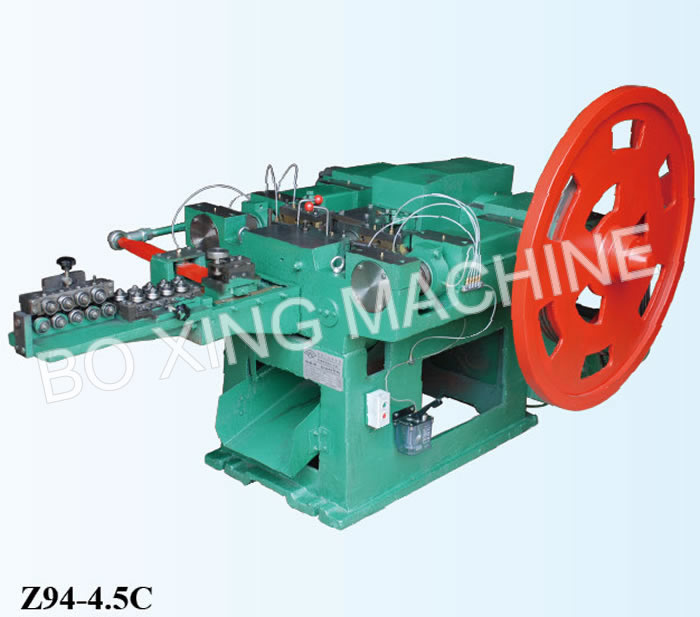

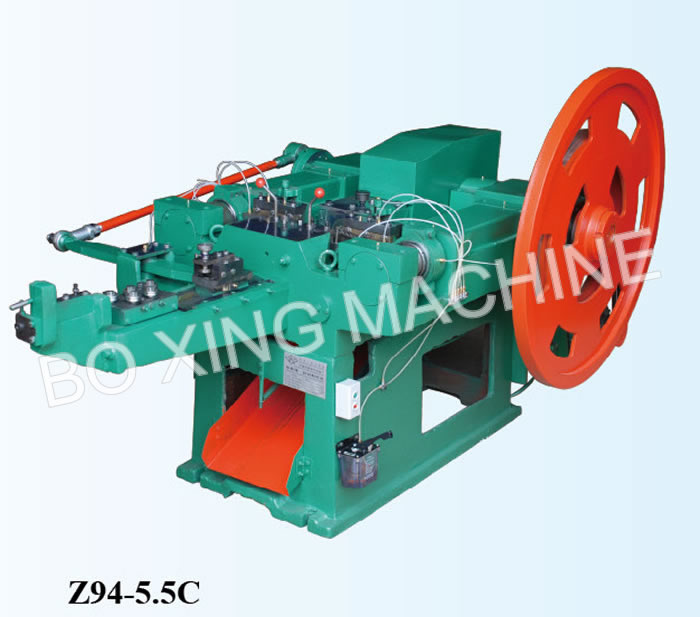

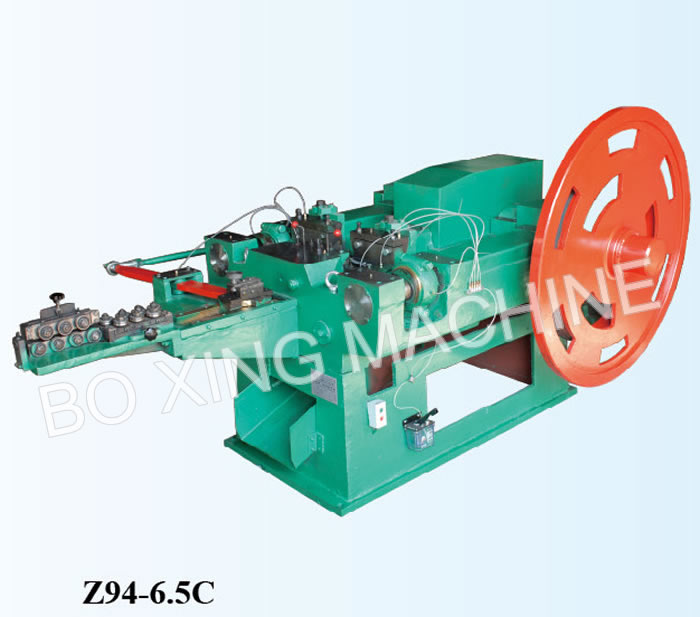

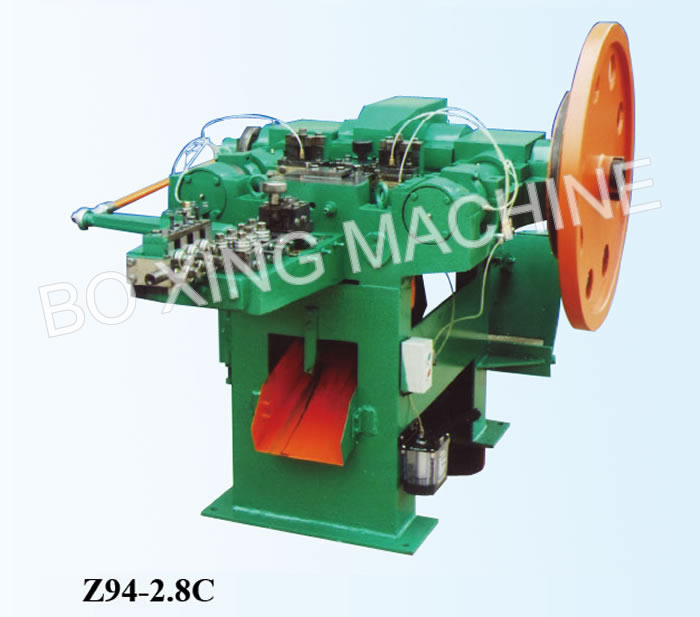

Performance:Z94 Type C New Generation High Speed Low Noise Automatic Nail Making Machine
Features:This Z94 series, new type C nail-making machines adopt plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailers.
Main Specifications:
| Technical data | Units | Z94-6.5C | Z94-5.5C | Z94-4.5C | Z94-3.4C | Z94-2.8C | Z94-1.6C |
| Dia of nail max | mm | 6.5 | 5.5 | 4.5 | 3.1 | 2.8 | 1.6 |
| Dia of nail min | mm | 3.4 | 3.1 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 203 | 152 | 100 | 75 | 50 | 25 |
| Length of nail min | mm | 100 | 70 | 50 | 30 | 16 | 9 |
| Designed capacity | pcs/min | 160-200 | 180-220 | 280 | 300 | 320 | 460 |
| Motor power | kw | 11 | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 5500 | 2600 | 2000 | 1800 | 1450 | 1200 |
| Overall dimensions | mm | 3250x1850 x1800 | 2600x1700 x1700 | 2200x1600 x1650 | 2000x1400 x1400 | 1700x1300 x1400 | 1500x1300 x1200 |

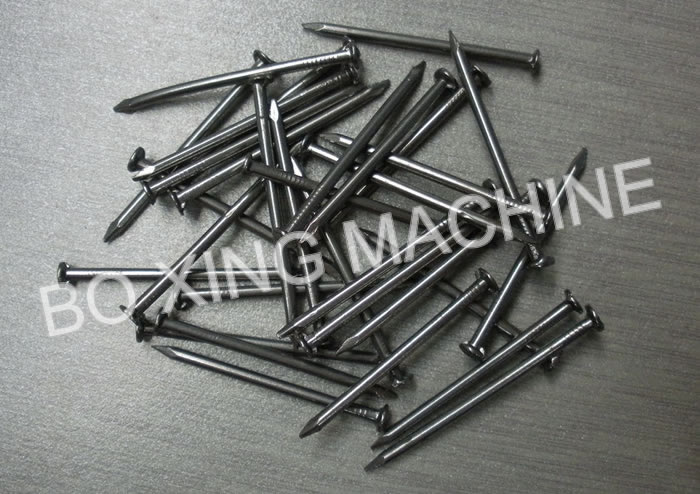

The finished products (nail)
