Brick Force Mesh Welding Machine

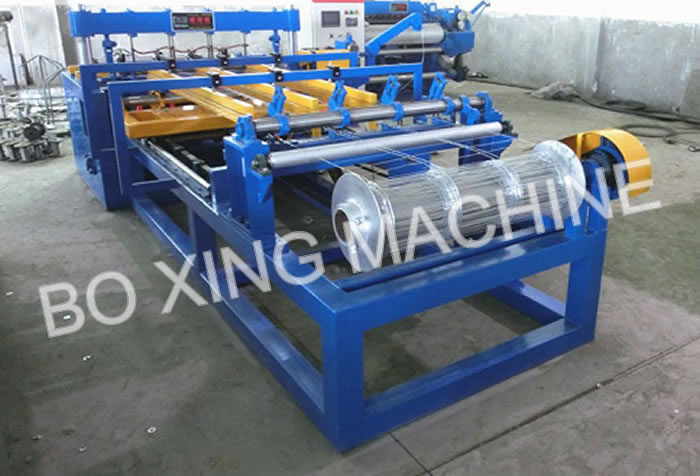

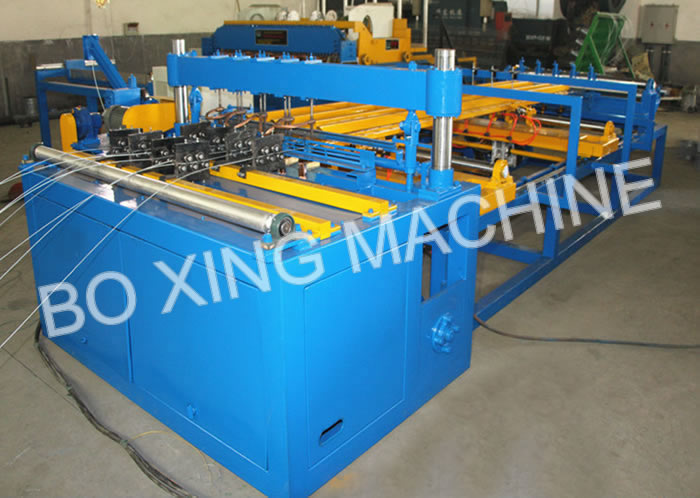

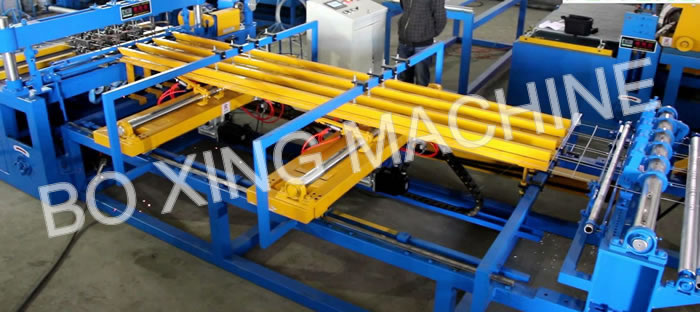

Automatic brick force mesh welding line production line ;Brick Force Mesh Welding Machine;

the brick force mesh welding line is used to make brick force mesh for construction, widely used in Africa. Brick Force Mesh Welding Machine, also called Brick Force Wire Making Machine, Automatic Brick Force Welded Mesh machine. Brick Force Wire Making Machine is coiled feeding line wire and four welding spot at the same time. Brick Force Welded Mesh machine is easy to control with button switches and counter.

 Machine Advantage

  • Line wire feed automatically from coil.
  • Cross wire feed automatically from coil or pre-cut.
  • It can produce three/four brick force rolls one time.
  • Easy to operate, need one worker.
  • Material: black wire, galvanized wire.
  • Brick Force Welded Mesh machine

Technical parameters

welding wire diameter

2.0-3.0mm

Distance between line wire

65mm115mm 165mm

Transformer

56KVAX2

Overal diamension

6×1.5×1.5m

Rated Voltage

380V

Distance between weft wire

250-300mm

No of welding points

6

welding speed

45times/minute

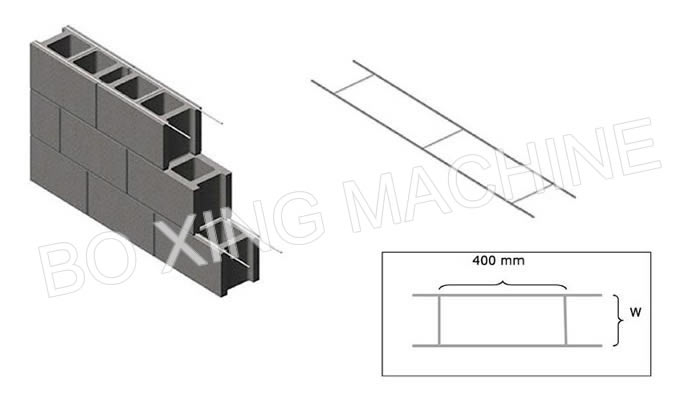

Finished products;
